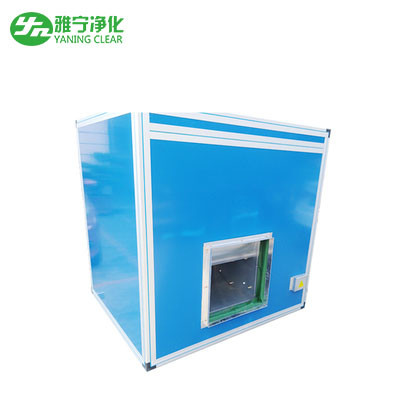

Low Noise Clean Room Ventilation Fresh Air Handling Unit With Horizontal Or Vertical Flow

Low-noise fresh air handing unit with horizontal or vertical flow

1. Air handing unit description:

1).Adopt processed electrostatic powder coating of high-strength galvanized steel sheet, high-performance anti-corrosion; new type of insulation material used PE material with excellent insulation and sound-absorbing effect, non-absorbent and can effectively prevent producing cold bridge

2). Adopt Single-phase capacitance asynchronous motor ,can be third gear speed to meet the different needs of air flow

3). Imported production OAK equipment, using thin-walled brass and the new fin, mechanical pipe up.Ensure the brass close coordination between the fins, so as to ensure the coil has the best possible effect of heat transfer, provide a reliable Protection for the efficient operation of the unit.

4), Adopt efficient forward-wing centrifugal blower, low-noise, stable and reliable performance; fan and motor in conjunction with the drive shaft, bearing select high-precision imported high-quality ball bearings, no need to make up oil .

5), First effect nylon net filters in the air into the Department

6), MHW series have the characteristics of high static pressure, large quantity of cold ,and small, simple structure, easy to install and maintain.

2. Air handing unit features:

Professional: structure is flexible and compact, low noise, smooth operation, adjustable pressure, long lifespan and other characteristics.

Flexibility: according to the special requirements of the new wind, configure the relative performance of the filter.

Diversity

1). variety sizes of flange optional.

2).1000 Different air flow is available 1000CMH, 2000CMH, 3000CMH,4000CMH, 5000CMH, etc.

3. Air handing unit application

Used for laboratory , operating room , biopharmaceutical , LED lights , circuit boards, microelectronics, medical industry , food processing and other clean fresh air demanding work environment; are widely used in civil construction of the ventilation system , also can be applied to the housing building plus wind and equiblast of fire control system, purification air pressurizing ansupplement and other occasion.
